42, 6 series meter consists of a measuring line, a measuring mechanism, and an indicator device. The magneto-electricity system magnetic structure is used. With ABS engineering plastic housing, printed scale panel and transparent glass cover used, the entire structure is elegant and artistic with open view.

42、 6 Series Analogue Panel Meters

Inquiry

Certificate

Overview

Product   name Spec. Measurement   range Accuracy grade
DC ammeter 6C2-A   42C3-A 50μA-20A   (direct connection)
    20A-10kA/75mV/60mV (external device)
Grade   1.5
DC voltmeter 6C2-V   42C3-V 50V-600V   (direct connection)
    450V-450kV/1mA/5mA (external device)
Grade   1.5
AC ammeter 6L2-A
    42L6-A
500mA-50A   (direct connection)
    5A-10kA/5A/1A (external device)
Grade   1.5
AC voltmeter 6L2-V
    42L6-V
15V-600V   (direct connection)
    380V-450kV/100V (external device)
Grade   1.5
Frequency meter 6L2-H
    42L6-H
45-55Hz,   45-65Hz, 55-65Hz Equivalent rated
    voltage 100V 200V 380V
Grade   2.5
Active power meter
    and reactive power
    meter
6L2-W/var
    42L6-W/var
5A-10kA/5A(external   device) 100V, 220V,
    380V-380kV/100V
Grade   2.5
Power factor meter 42L6-S   COSΦ
    6L2-S COSΦ
0.5C-1-0.5L   100V 5A 380V 5A Grade   2.5

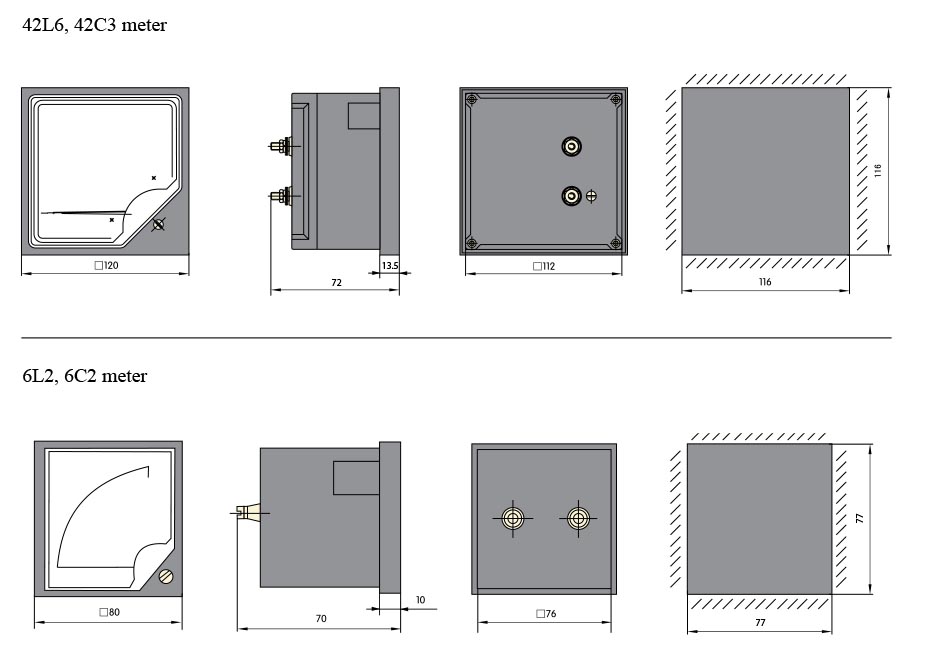

Outline and installation dimension:
