TEM5E

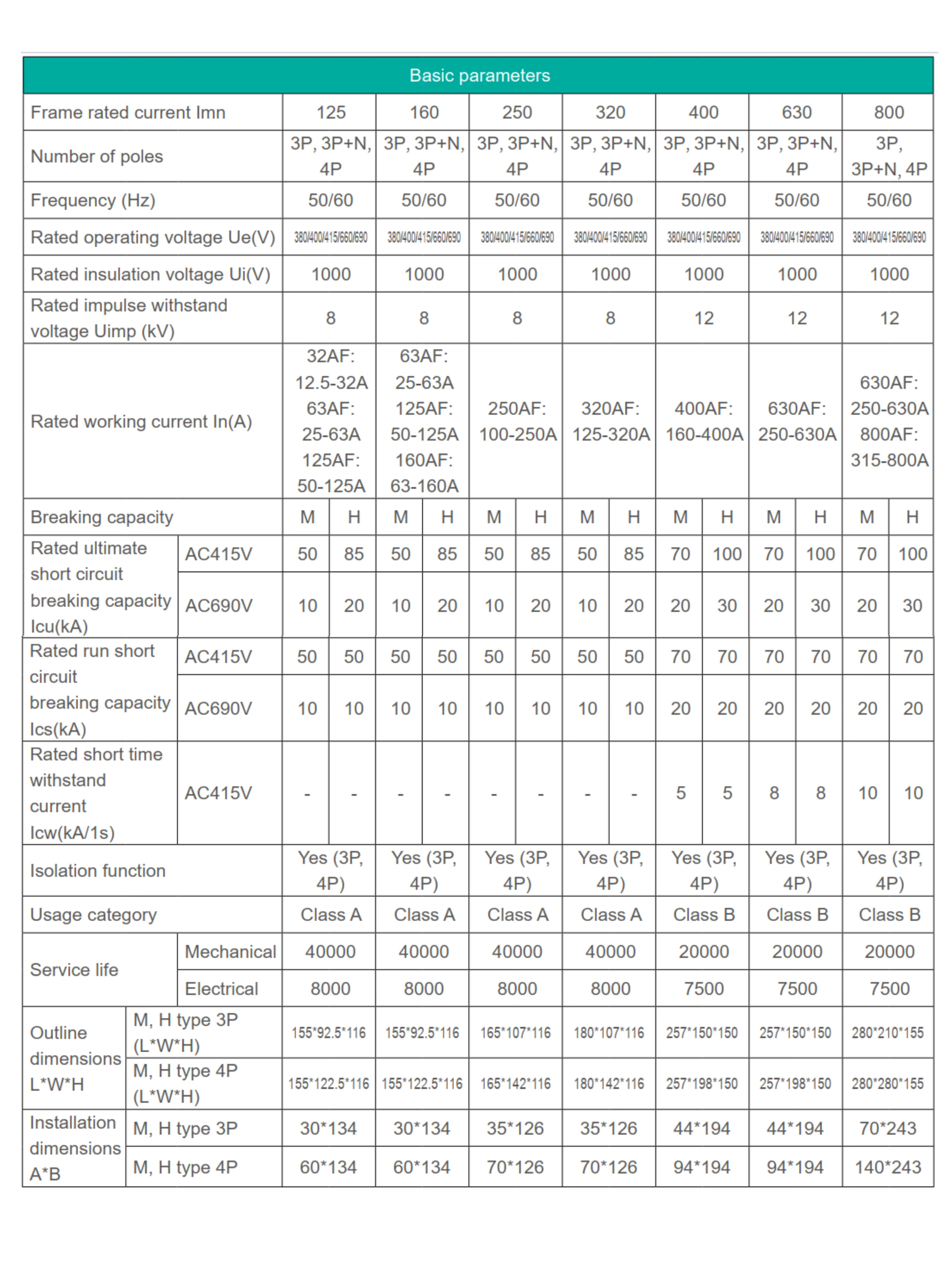

• Use category: See technical parameters table

• Protection grade: IP40 (installed in the small chamber in the cabinet with door frame provided)

• Electromagnetic compatibility: Electromagnetic environment A

• Installation angle: The vertical slope does not exceed 5°

Working and Installation Conditions

• Ambient temperature: The low temperature type is suitable for the -40℃ - +70℃ environment where the mean value does not exceed +35℃ within 24 hours. If below -5℃ or higher than 40℃, derating is required.

• Atmosphere conditions: The relative temperature does not exceed 50% at ambient temperature +40°C, and

higher relative humidity can be allowed at lower temperatures; for example, when the mean monthly minimum

temperature is +25°C, the relative humidity is 90%, considering the condensation that occurs on the surface of

the product due to temperature changes.

• Altitude: Suitable for up to 2000 m; if more than 2000 m, the altitude derating is required.

• Installation category: Main circuit: Class III; the installation category of the auxiliary circuit and control circuit

not connected to main circuit is Class II.

• Pollution degree: 3

• Use category: See technical parameters table

• Protection grade: IP40 (installed in the small chamber in the cabinet with door frame provided)

• Electromagnetic compatibility: Electromagnetic environment A

• Installation angle: The vertical slope does not exceed 5°
