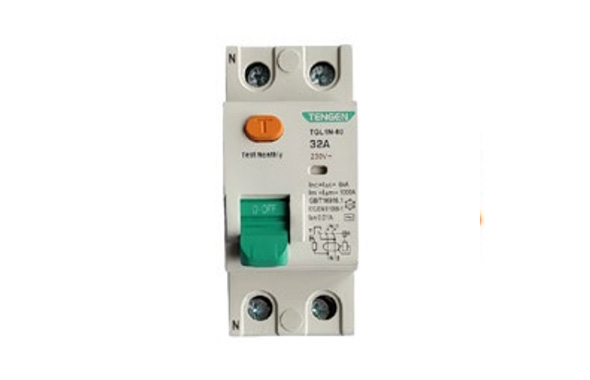

TGL1N-80(H)

TGL1N-80 series residual current circuit breaker is used in AC 50/60Hz circuit with rated voltage AC230V/240V(2P), AC400V/415V(4P), and with rated current up to 80A. It can quickly cut off the power supply in a short time in case of personal electric shock or when the leakage current of the power grid exceeds the specified value for safety protection of people and electrical equipment and is used for infrequent conversion of the line and for infrequent startup of the motor. This product is suitable for various places such as industries, commercial purposes, and high-rise residential buildings.

Inquiry

Catalog

TGL1N-80(H).pdf

Certificate

Overview

Number of poles	2P4P
Rated frequency (Hz)	50/60Hz
Frame current (A) Inm	80
Rated current (A) In	16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A
Rated voltage (V) Ue	AC230V/240V (2P), AC400V/415V (4P)
Rated insulation voltage (V) Ui	690
Rated impulse withstand voltage (kV) Uimp	4kV
Rated limiting short-circuit current(Inc)
Rated limiting residual short-circuit current (I △ c)
Rated residual making and breaking capacity (A) (I △ m)	1,000A
Maximum breaking time at rated residual current	≤0.1s
Pollution degree	2
