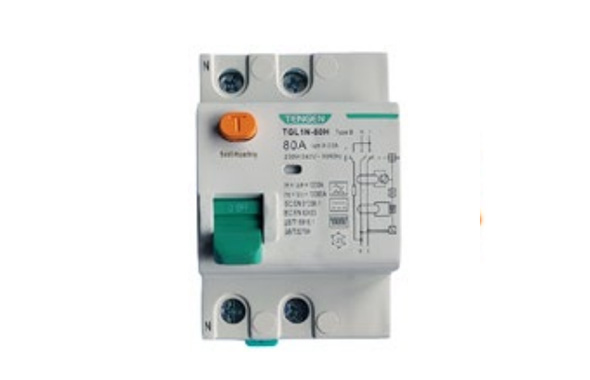

TGL1N-80H series residual current circuit breaker is suitable for AC 50/60Hz Hz type B residual current protection circuit with rated voltage AC230V/240V (1P+N), AC400V/415V (3P+N), and with rated current up to 80A. It can quickly cut off the power supply in a short time in case of personal electric shock or when the leakage current from the power grid exceeds the specified value for safety protection of people and electrical equipment and is used for infrequent conversion of the line and the infrequent start of the motor. this product is suitable for various places such as industries, commercial purposes and charging pile fields, and high-rise residential buildings.
Inquiry
Certificate
| Number of poles | 1P+N/3P+N |
| Rated frequency (Hz) | 50/60Hz |
| Frame current (A) Inm | 80 |
| Rated current (A) In | 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A |
| Rated voltage (V) Ue | AC230V/240V (1P+N), AC400V/415V (3P+N) |
| Rated insulation voltage (V) Ui | 690 |
| Rated impulse withstand voltage (kV) Uimp | 4kV |
| Rated short-circuit breaking capacity (kA) Ics | 10 |
| Rated short-circuit capacity (kA) Icn | 10 |
| Rated residual making and breaking capacity (A) (I △ m) | 1,000A |
| Maximum breaking time at rated residual current | ≤0.1s |
| Pollution degree | 2 |
