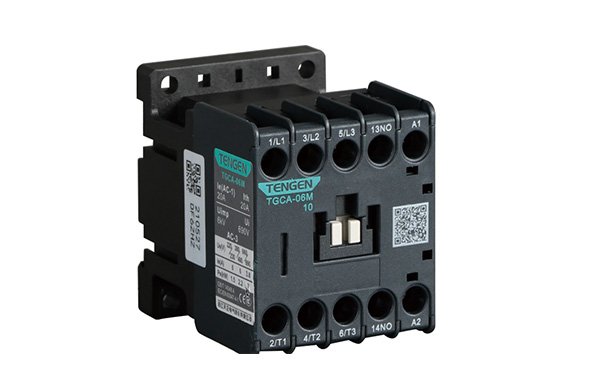

TGCA- □ M Mini AC contactor (hereinafter referred to as contactor) features with artistic appearance and small size. It is primarily used in the AC 50Hz(50/60Hz) power system with the rated working voltage up to 690V, and with the rated working current up to 12A at the rated working voltage 380V under the AC-3 usage category for remotely marking and breaking circuit breaker. The contactor is suitable for AC motor with frequent starts and controls.
Inquiry
Certificate
Working environment conditions:
| Installation category | Class III |
| Pollution degree | 3 |
| Proteciton grade | IP20 |
| Ambinet air temperature | Ambient temperatgure (surrounding the equipment): permissional working temperature: -35℃~+70℃; normal working temperature: -5℃~+40℃; when |
| the working tempeature is higher than +40℃, it must be considered taht the | |
| permissonal limit temperature rise of product shall be reduced. When the working | |
| temperture is below than -5℃, it shall be considred that greased used for insulation and lubrication may be frozen in a too low ambient temperature, resulting in action failure of product. The manufacturer shall contact the user for design or usage | |
| through negatiation. | |
| Altitude | ≤2,000 meters |
| Atmospheric conditions | The relative air humidity does not exceed 50% at the maximum temperture |
| +70℃, and a higher relative humidity is allowed at a lower temperature, such as up to 90% at 20℃. Special measures shall be taken for condensation occurred | |
| occasionally due to temperature changes. | |
| Installation conditions | The inclination between the mounting plane and the vertical plane is not greater than ±22.5° |
| Impact and vibration | The product shall be installed in places where there is no obvious shaking, |
| impact or vibration. |
