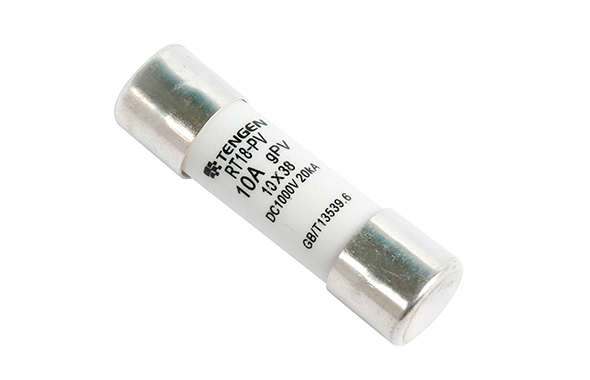

RT18-PV photovoltaic fuse is suitable for solar photovoltaic system with rated voltage up to DC1000V, rated current up to 20A, and rated breaking capacity up to 20kA mainly for overload and short-circuit protection; breaking range and usage category: gPV.
Inquiry
Certificate
Working environment conditions:
1.1 Ambient temperature: -25℃ ~ +60℃
Refer to air temperature directly around the fuse body rather than room temperature. In many applications,
the fuse temperature is quite high, because the fuse is installed in the supports / bases of different structure
and the entire fuse is also sealed in a power distribution / control cabinet.
1.2 Altitude: Not exceed 2,000 meters
1.3 Atmospheric conditions: The air is clean, and its relative humidity does not exceed 50% at the maximum
temperature 60℃; a higher relative humidity is allowed at a low temperature. For example, the relative humidity can be up to 85% at 20℃, and the maximum relative humidity does not exceed 90%; the middle condensation may occur occasionally due to temperature changes under those conditions.
1.4 Pollution degree: 3.
1.5 Installation category: III.
1.6 Installation site: The fuse shall be installed in places where there is no obvious shaking or impact vibration.
1.7 Please contact the manufacturer when the working conditions are different from the above conditions.
| Model | Dimension L x C | Rated voltage (V) | Rated current (A) | Power dissipation | Rated breaking capacity (kA) |
| RT18-PV | 10×38 | DC1000 | 2, 4,6,8, 10, 12, 15, 16, 20 | ≤3 | 20 |
