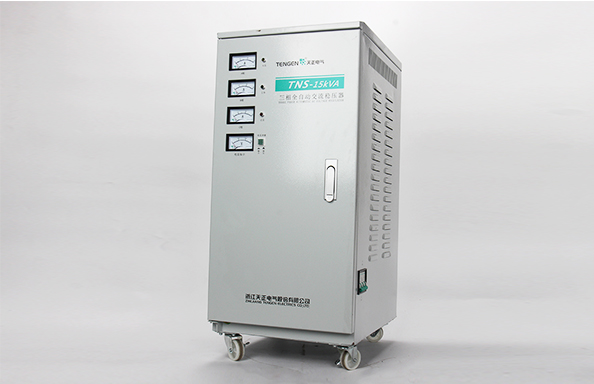

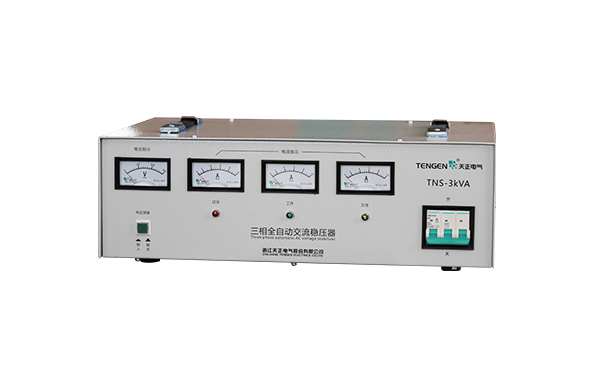

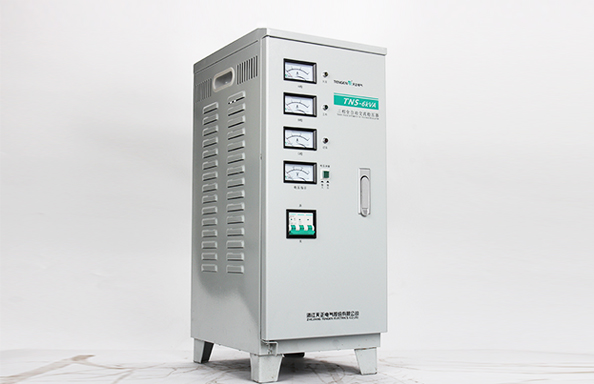

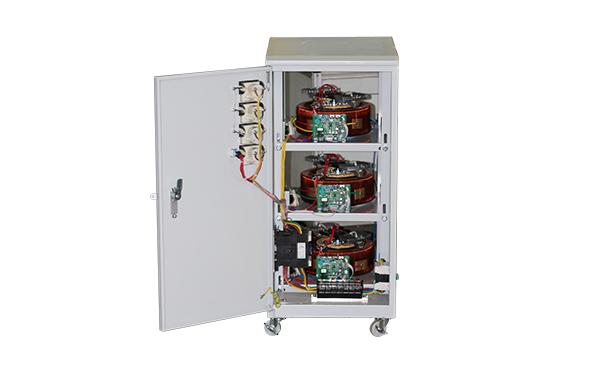

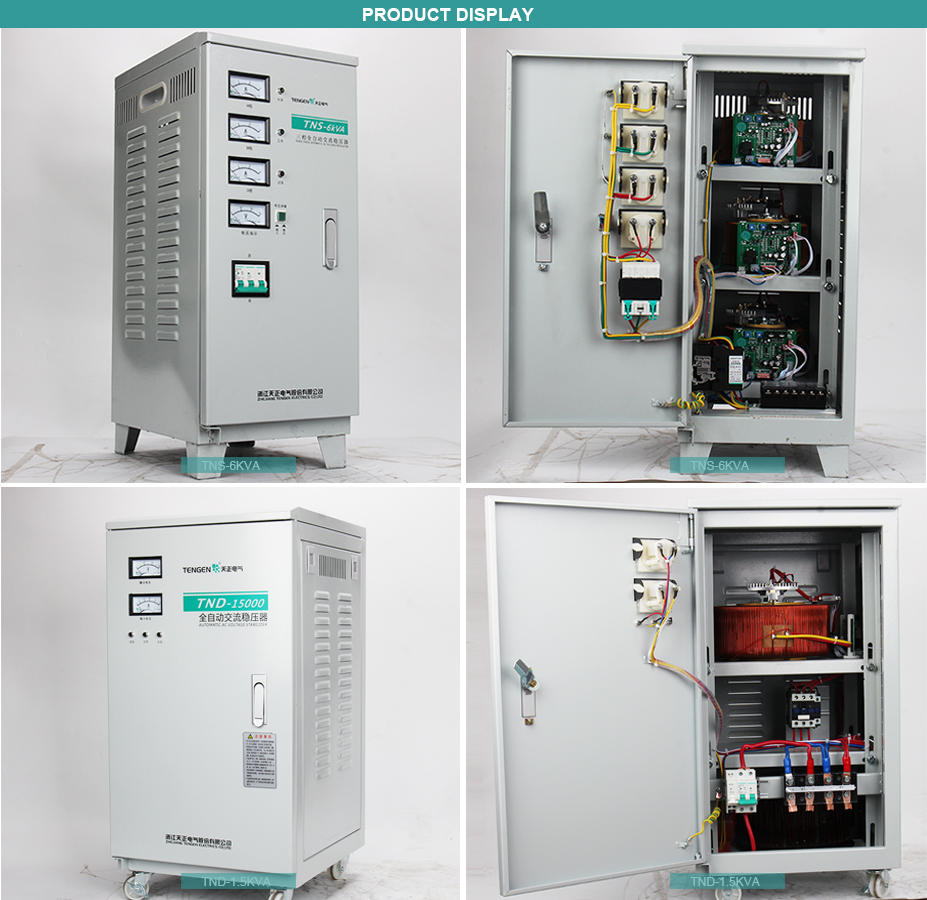

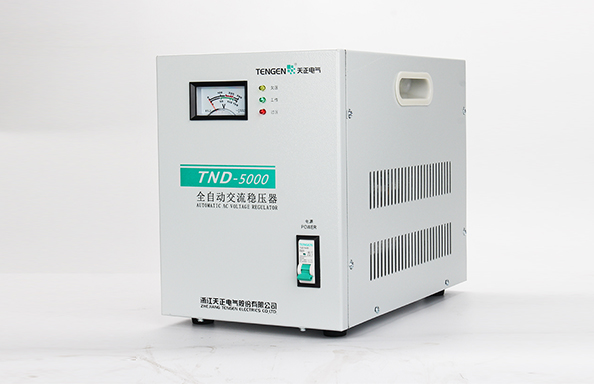

TND/TNS series automatic AC voltage stabilizer consists of a contact-type voltage regulator and an automatic control circuit. After sampling and amplifying the output voltage, the servo motor is controlled to drive the electric brush components rotate in the required direction on the annular voltage regulating coil friction surface allowing the output voltage is adjusted to the rated value for obtaining stable voltage.
The product can be widely used in power supplies of many electrical equipment and facilities such as office equipment, debugging instrument, communication system, industrial equipment, medical equipment, and household appliances.
Inquiry
Catalog
Certificate
| Number of phases | Single-phase | Three-phase |
| Specifications | 0.5kVA, 1kVA, 1.5kVA, 2kVA, 3kVA, 5kVA, 7.5kVA, 10kVA, 15kVA, 20kVA, 30kVA | 1.5kVA, 3kVA, 4.5kVA, 6kVA, 9kVA, 15kVA, 20kVA, 30kVA, 40kVA, 50kVA, 60kVA, 75kVA |
| Input voltage | 160V ~ 250V | 280V ~ 430V |
| Output voltage | 220V±3% (110V±3% for 3kVA and below) | 380±3% |
| Output overvoltage protection | 246±4V (No overvoltage protection for 1.5kVA and below and 110V output) | 430±7V (No overvoltage protection for TNS-4.5kVA and below) |
| Rated working frequency | 50Hz | |
| Frequency | Greater than 90% | |
Working environment conditions:
1.1 Ambient environment: -5℃ ~+40℃ (suitable for indoors type)
1.2 Relative humidity: Not greater than 90% (at temperature +25℃ )
1.3 Installation site: The altitude does not exceed 1000m.
1.4 Working environment: Installed in the ventilated and dry room free of direct sun radiation, corrosive medium and flammable and explosive gas.
1.5 Used indoors; output cannot be used in parallel.
1.6 Special use conditions shall be agreed and determined by the client and our company
