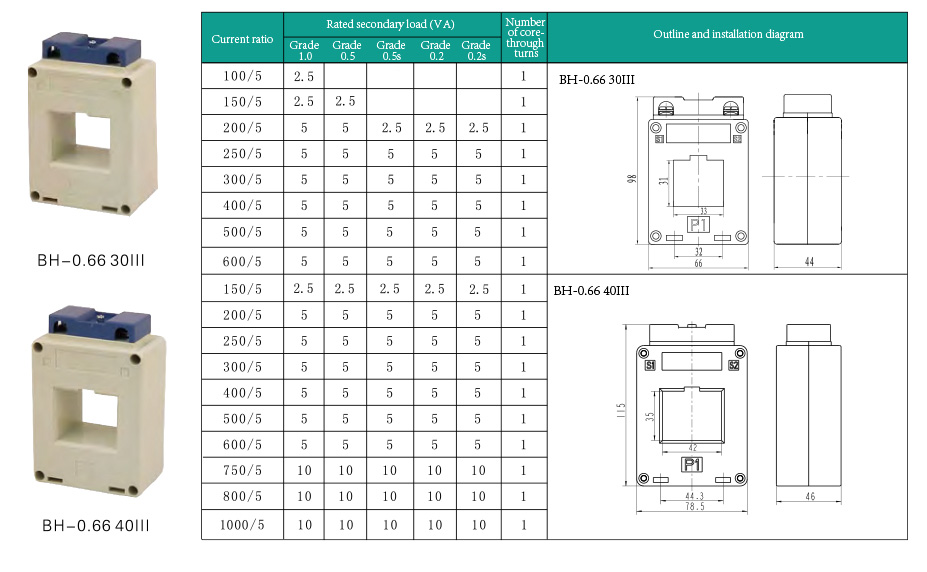

The BH-0.66 III type current transformer is mainly used indoors for current, electric energy measurement or relay protection in AC 50Hz lines with a rated voltage of 0.66kV. The product is a plastic case current transformer, and widely used in complete cabinets. The installation method can adopt the busbar fixing and baseplate fixing installation method.
Available standards: IEC 61869-1.
Inquiry
Certificate
Working environment conditions:
1.1 Installation site: indoors.
1.2 Ambient temperature: -5ºC to +40ºC; the mean daily temperature does not exceed +30ºC.
1.3 Altitude: Not exceed 1000m.
1.4 Atmosphere conditions: When the maximum temperature is +40ºC, the relative humidity of air does not exceed 50%, and the allowable relative humidity at the lower temperature does not exceed 80%.
1.5 There is no serious dirt in atmosphere and no gas and conductive dust that may cause corrosion to metal and damage to the insulation in medium.
1.6 The installation site shall be free of severe vibration and bump.
1.7 The installation site is not directly under the sun radiation without rain and snow erosion and serious mold.
