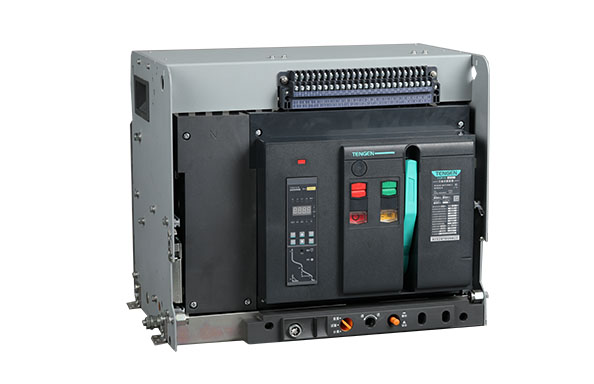

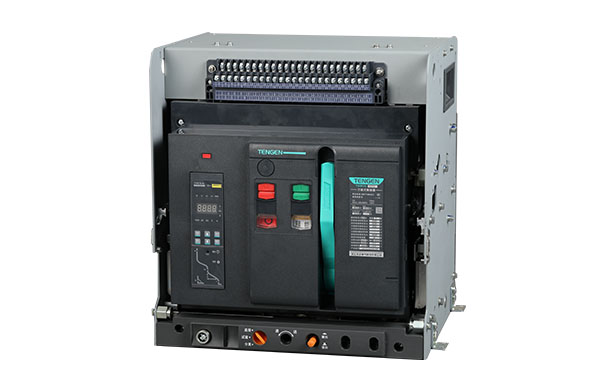

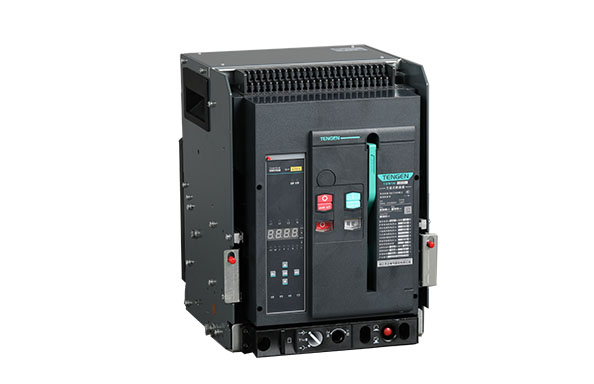

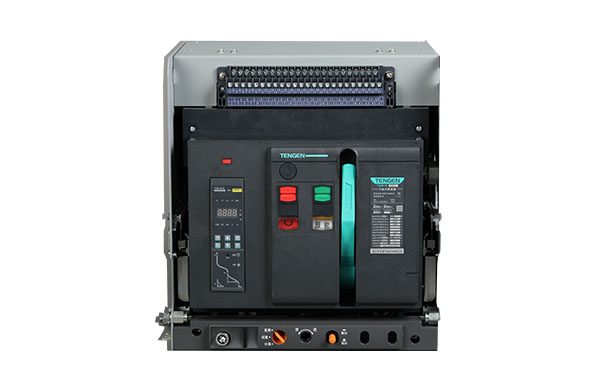

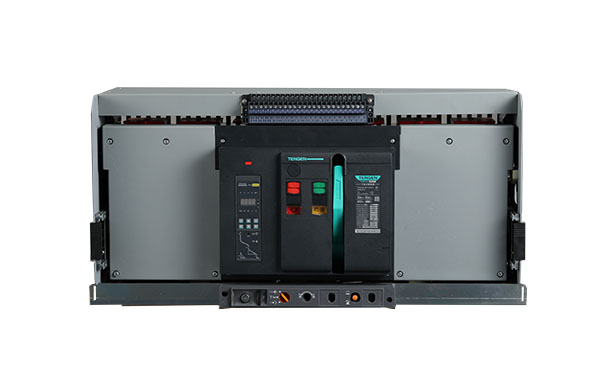

TGW1N series Air Circuit Breaker is suitable for distribution network with AC 50Hz, rated voltage of AC380V-AC690V, rated current of 200A-6,300A. It is used for distributing electric energy and protecting circuits and power units from overload, short circuit, undervoltage, one-phase ground or residual current.
International Standards and Certification: CE CB
Comply with the standards: IEC/EN60947-2

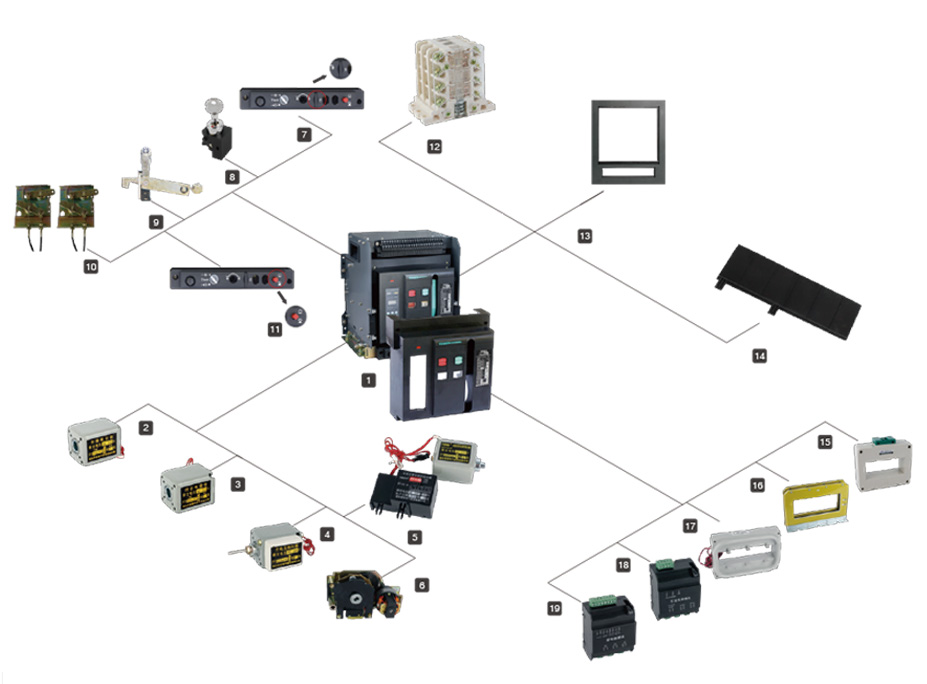

Overview

1. Installation category

Class IV for main circuits of the circuit breaker and voltage tripper coil and primary coil of power transformer; Class III for auxiliary circuit and control circuits. The inclination with the vertical plane does not exceed 5° when installation.

2. Pollution class: 3

3. Altitude ≤2,000m, derating when above 2,000 m.

4. Atmospheric conditions

The relative humidity does not exceed 50% at the ambient temperature of +40°C, and a higher relative humidity at the lower temperature may be allowed;

The relative humidity at the low temperature +25°C can be up to 90%. The necessary measures can be taken for condensation on the product surface due to temperature changes.

5. Protection level IP20 for the front and IP00 for the remaining

6. Electromagnetic interference Suitable for electromagnetic environment



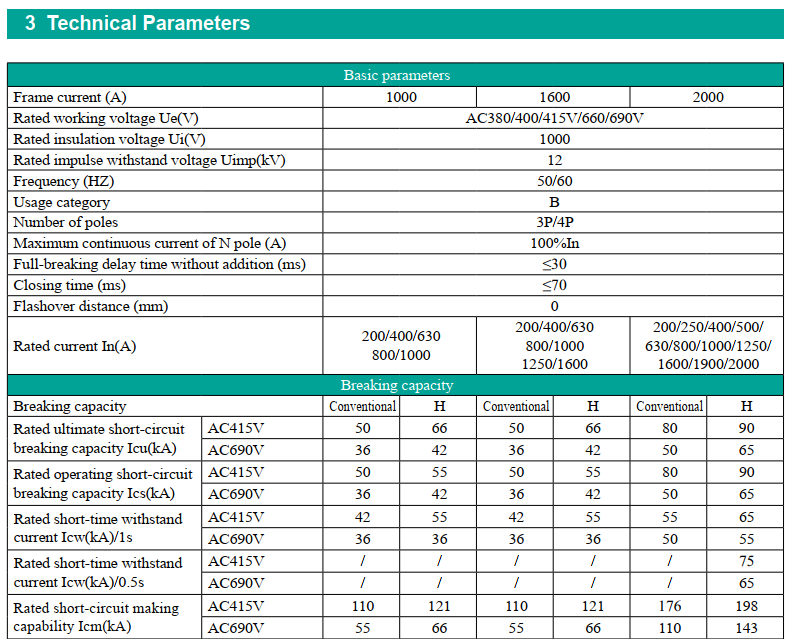

Basic parameters
Frame current 160020002500320040006300
Rated working   voltage Ue(V) AC415/690 AC400/690
Rated insulation   voltage Ui(V) 1000
Rated impulse   withstand voltage Uimp(kV) 12
Frequency (HZ) 50
Use category B
Pole number 3P/4P 3P 3P/4P
Maximum continuous   current of N pole (A) 100%In 50%In
Full-breaking delay   time without addition (ms) ≤30
Closing time   (ms) ≤70
Flashover distance   (mm) 0
Rated current In(A)200/400/630
    800/1000
    1250/1600
200/250/400
    500/630/800
    1000/1250
    1600/1900
    2000
630/800
    1000/1250
    1600/2000
    2500
2000/2500
    2900/3150
    3200
40004000/4900
    5000/5900
    6300
Breaking capacity
Breaking   capacity Conventional Conventional Conventional Conventional Conventional ——
Rated ultimate short-circuit
    breaking capacity Icu(kA)
AC400V 50558090100100100100100100120
AC690V 2530506565656565656575
Rated operating short-circuit
    breaking capacity Ics(kA)
AC400V 42508090801008010080100100
AC690V 2025406550655065506565
Rated short-time withstand
    current Icw(kA)/1s
AC400V 42505565808080808080100
AC690V 2025405050505050505065
Rated short-time withstand
    current Icw(kA)/0.5s
AC400V 75100100100/
AC690V 65656565/
